The Barton DIY Cold Tub. The Industry's Best DIY Cold Therapy Solution.
Done with the leaky inflatable ice bath? Tired of the sketchy chest freezer conversion? The Barton DIY Cold Tub gives you the same commercial-grade, fully insulated tub and equipment cover as The Barton Cold Plunge, without the chiller, water pump, or filtration system. Bring your own equipment and plug it into a tub that's actually built for it.
Built for Serious DIY Cold Therapy

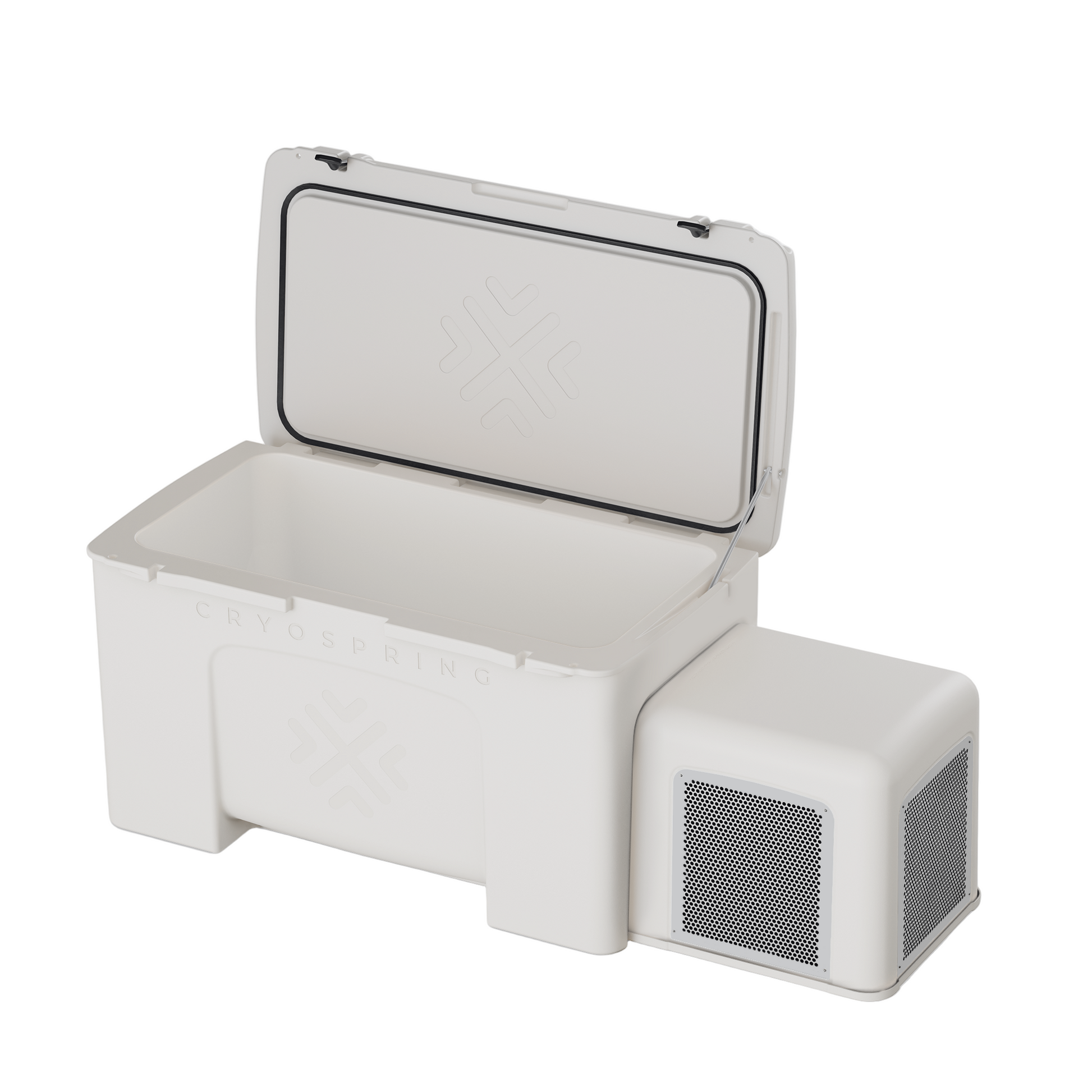

The Barton DIY Cold Tub is rotomolded, hand-assembled in Minnesota, and engineered to work with your chiller setup. Every port, insert, and drain is purpose-built so your system integrates cleanly and performs reliably. No hacks. No workarounds. Just a proper foundation for your cold therapy practice.
Key Features
- Indoor + Outdoor Safe. Use it anywhere.

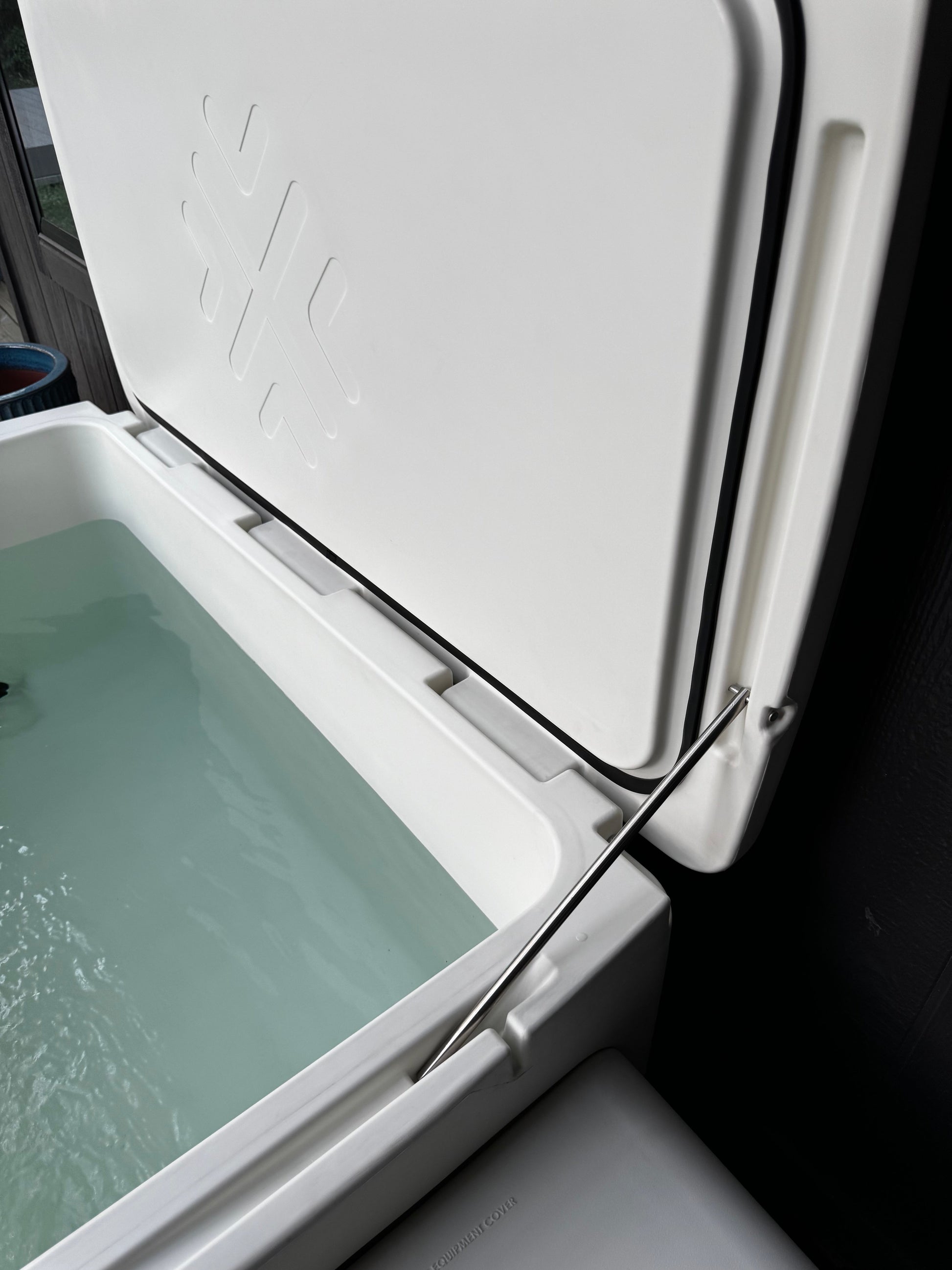

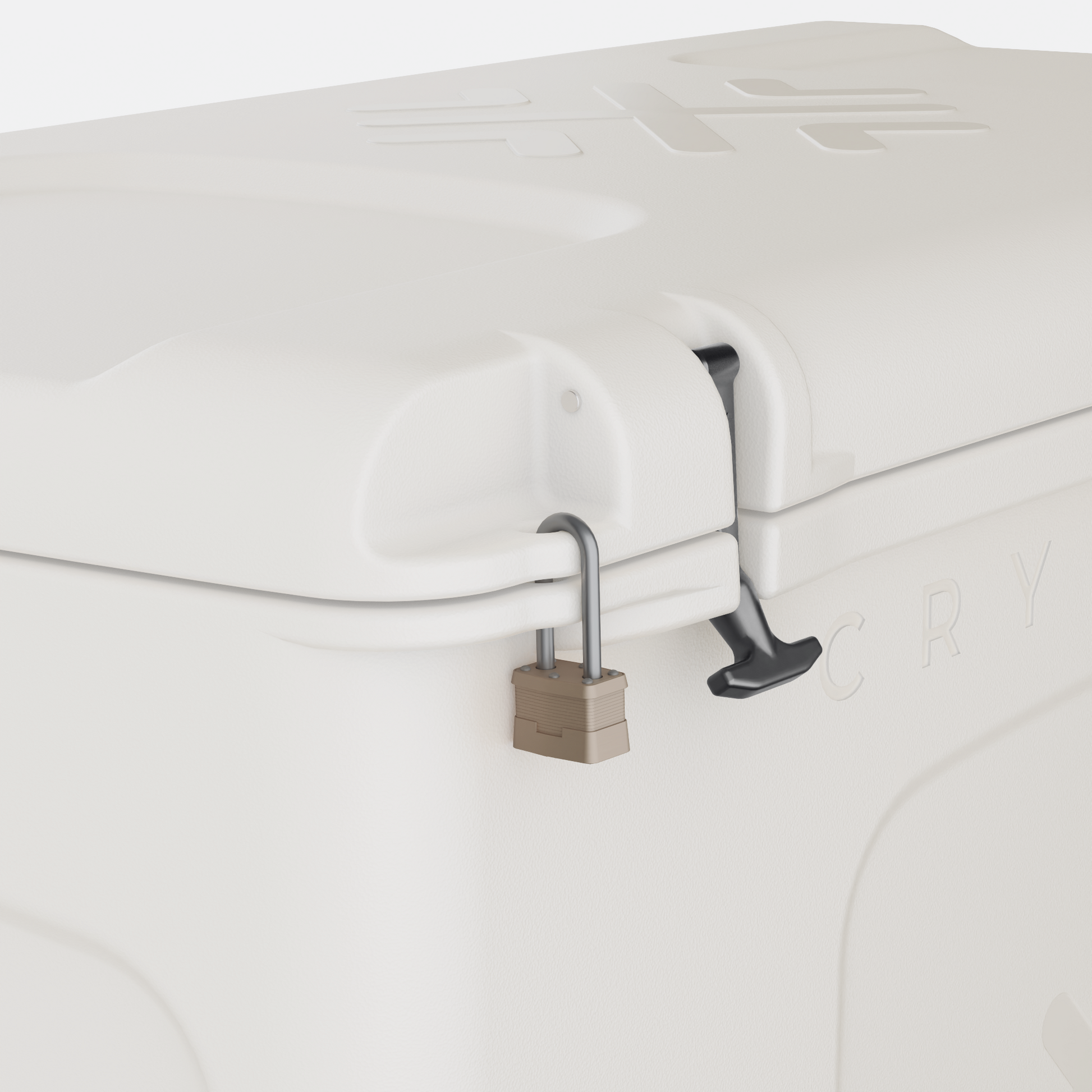

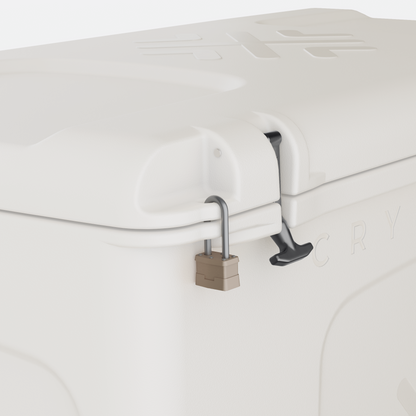

- Lockable Lid with Gasket and Rust-Resistant Prop. Secure, insulated, and built to last.

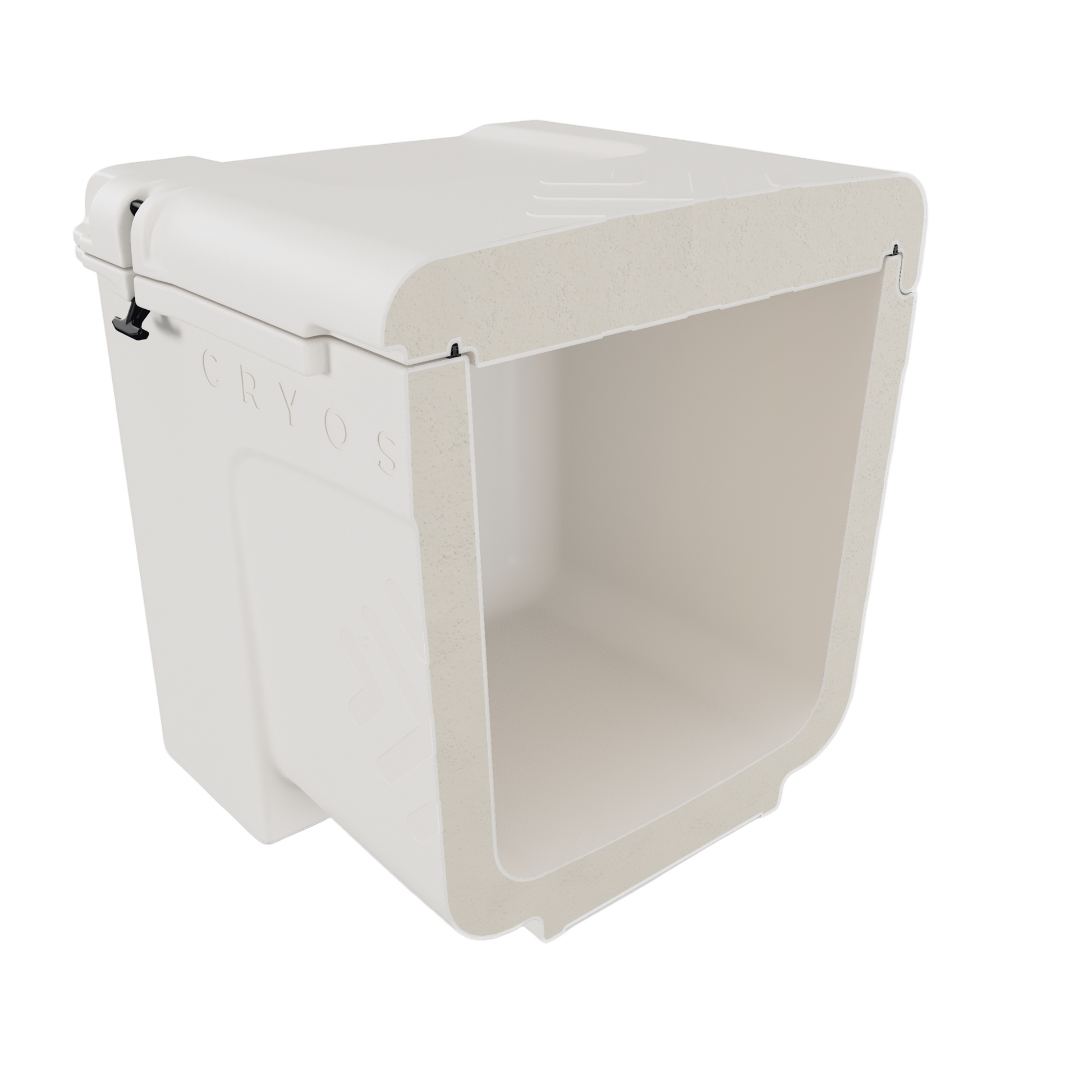

- Up to 4.5 Inches of Closed-Cell Insulation. Holds temperature longer and cuts energy costs.

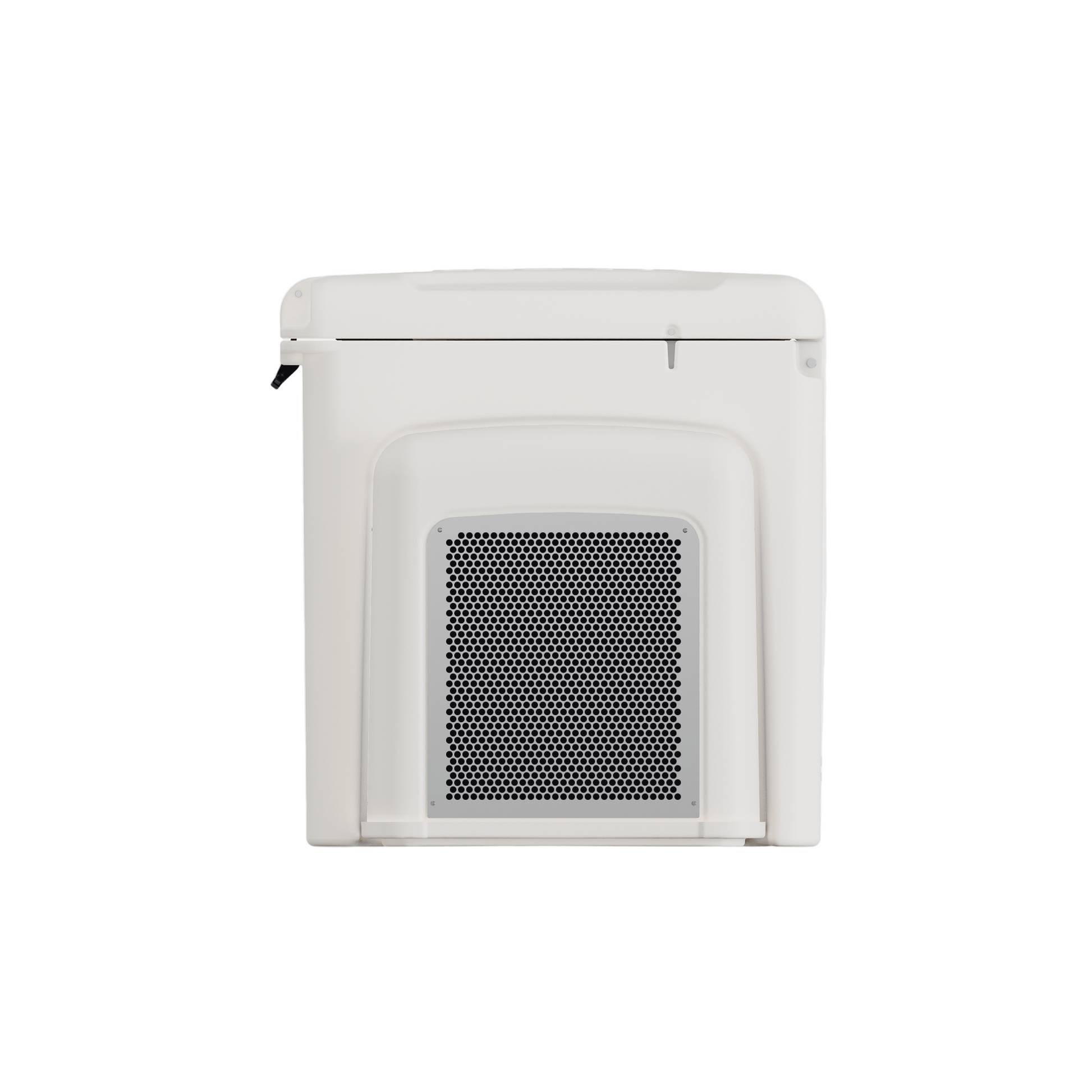

- Ventilated Equipment Cover with Drip Pan. Keeps your chiller protected and your space clean.
- Molded-In 3/4-Inch NPT Chiller In/Out Ports. Clean, leak-free chiller connections.
- Molded-In Inserts for Filter Mounting. Ready for your filtration system right out of the box.

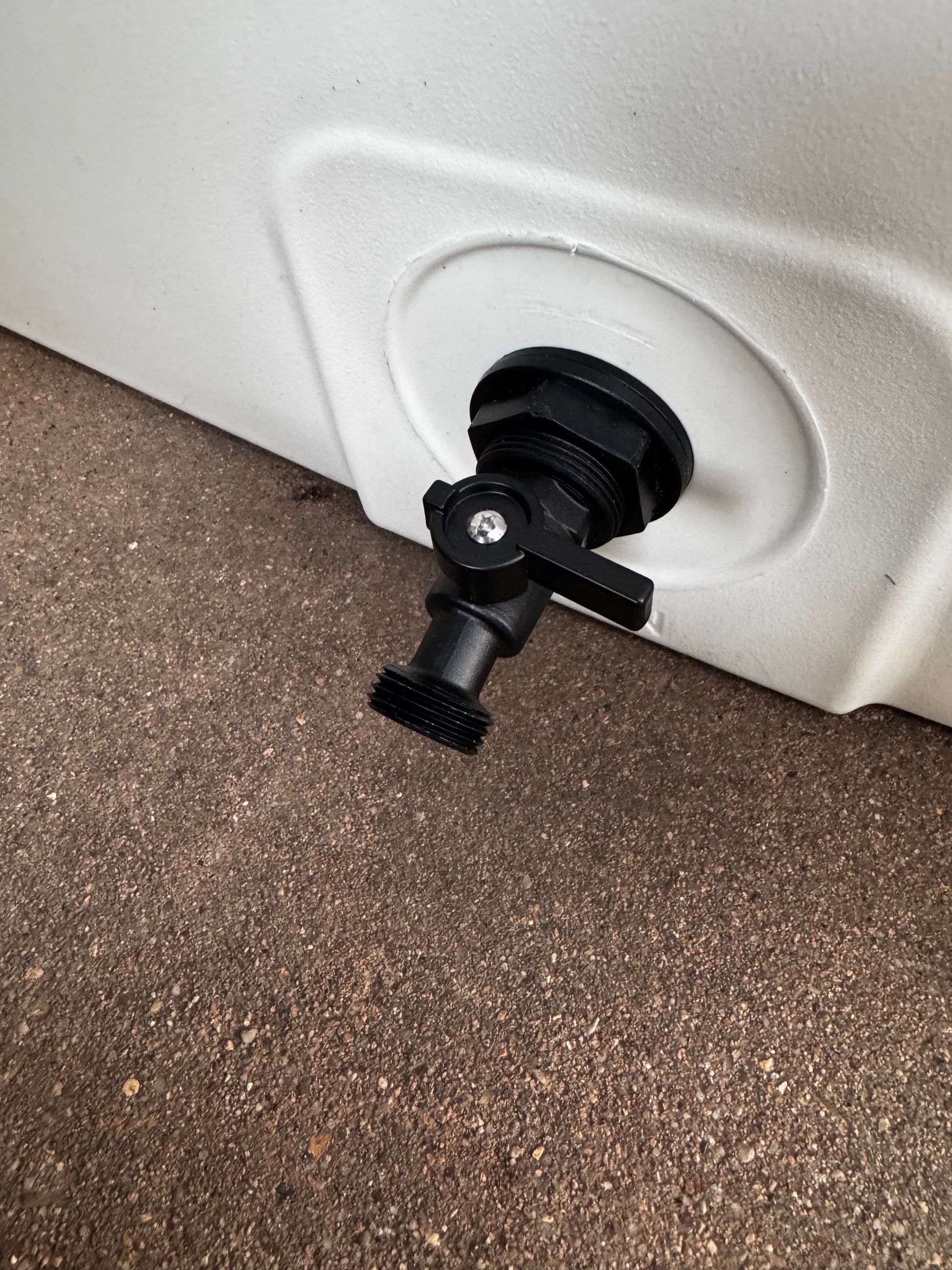

- Garden Hose Drain Valve and Pre-Pump Strainer. Easy draining, less maintenance.
- Made in the USA. Designed in-house and hand-assembled in Minnesota.
Dimensions
Total Dimensions with Equipment Housing
- Length: 86.75"
- Width: 33.5"
- Height: 35.5"
- Empty Weight (Tub Only): 160 lbs
- Shipped Weight: 223 lbs
Internal Tub Dimensions
- Length: 53.25"
- Width: 26"
- Depth: 27.25"
- Capacity: 150 Gallons

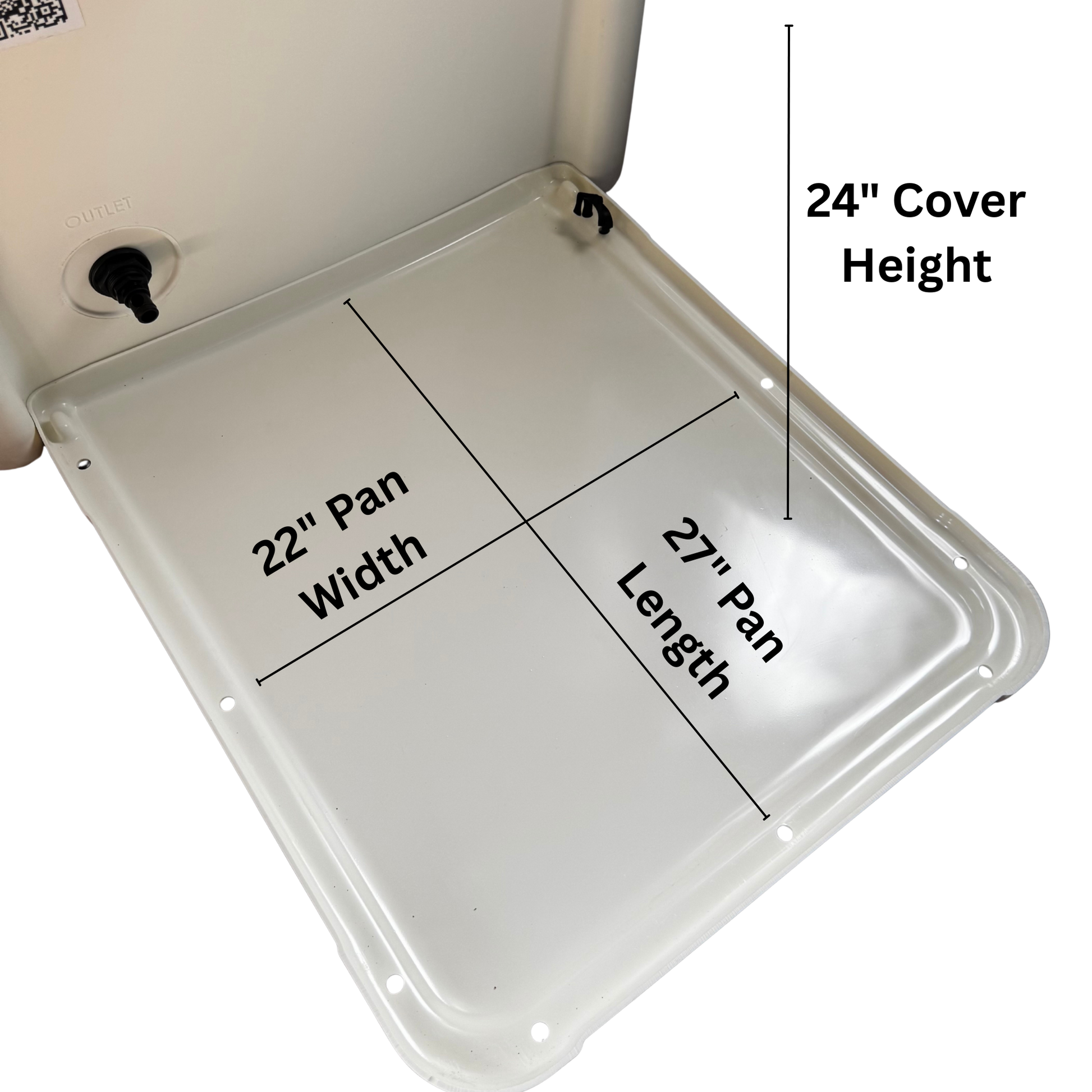

Equipment Housing Internal Dimensions
- Drip Pan Length: 27"
- Drip Pan Width: 22"
- Housing Height: 24"
Important Note
This is a DIY cold tub. It requires an all-in-one chiller or a stand-alone chiller, water pump, and filtration system to function as an iceless cold plunge. Check the Equipment Housing Internal Dimensions above to verify fitment for chillers not listed. Contact us with any questions.
