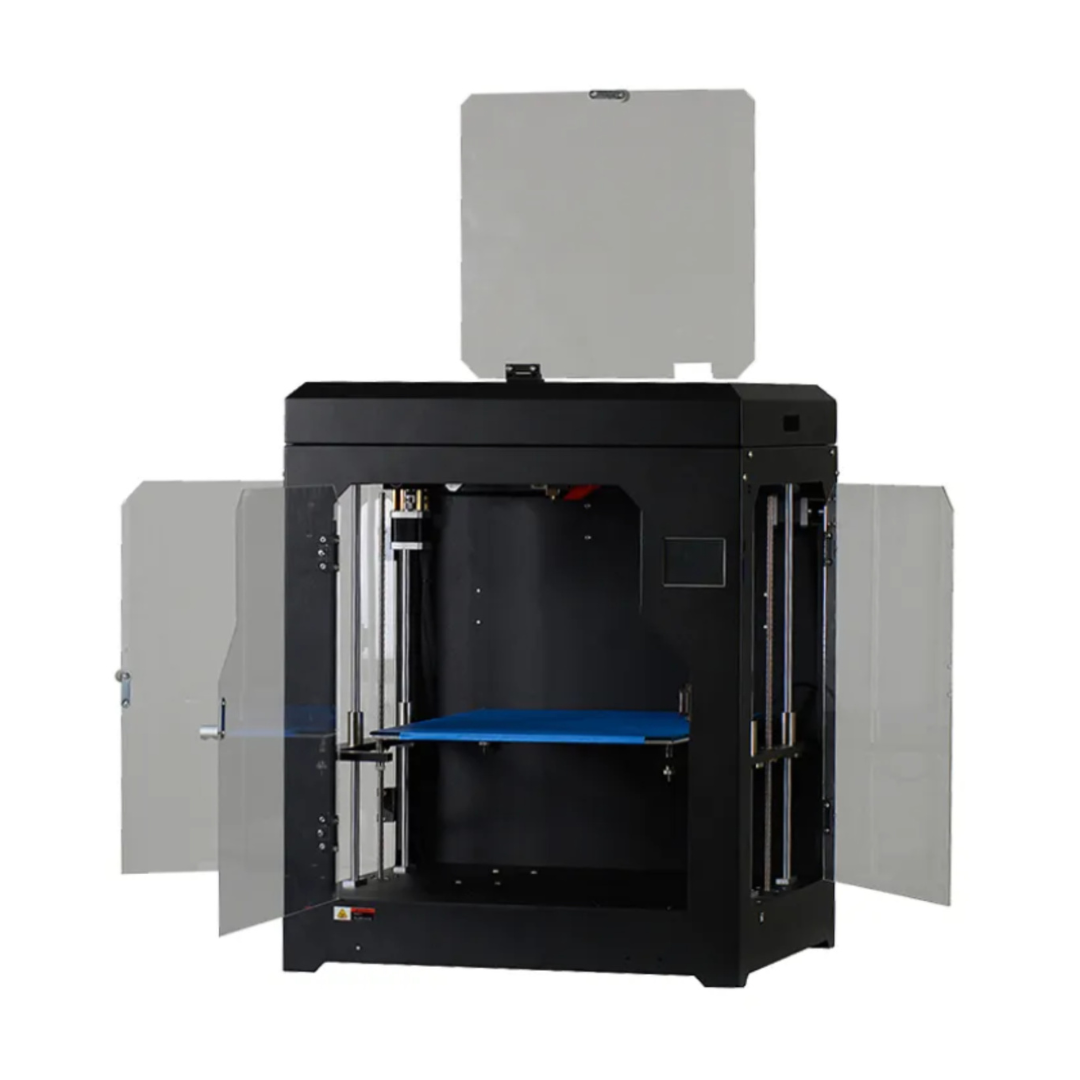

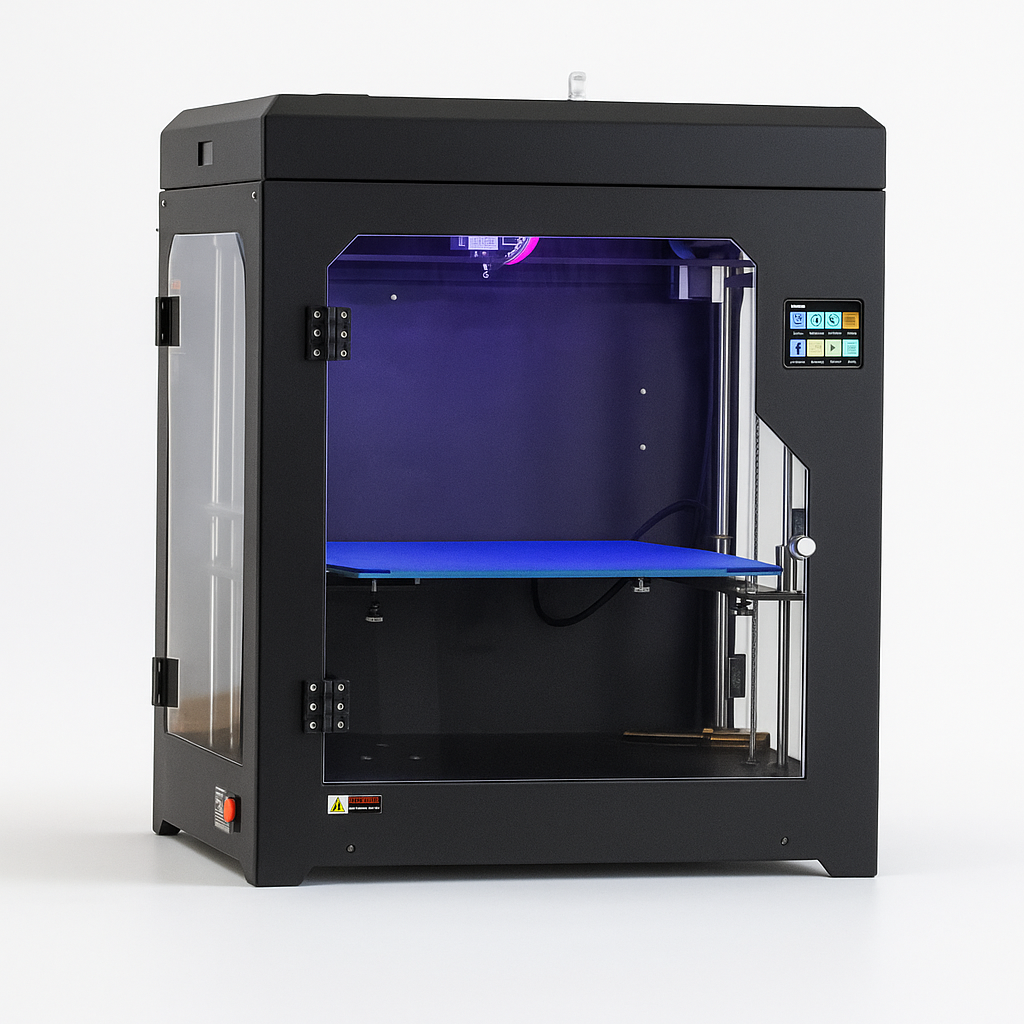

AegisFab Pro X1 Enclosed 3D Printer

The AegisFab Pro X1 Enclosed 3D Printer is built for professional-grade results with the ease of a desktop unit. Its rigid steel chassis, fully enclosed chamber with HEPA filtration, and high-temperature, direct-drive extrusion deliver exceptional reliability on demanding materials like ABS, Nylon, and CF blends. A large build volume, whisper-quiet motion system, and a responsive color touchscreen make it a powerhouse for labs, studios, and advanced makers.

Specifications

• Material: Powder-coated steel frame, aluminum gantry, polycarbonate doors

• Dimensions: 600 mm (L) x 500 mm (W) x 720 mm (H)

• Features: Enclosed heated chamber, HEPA/Carbon filter, Wi-Fi & LAN, filament sensor

• Build Volume: 350 mm x 350 mm x 400 mm

• Extrusion & Bed: All-metal hotend to 300 °C, dual-gear direct drive, PEI spring-steel bed 20–110 °C

Features

• CoreXY Motion with Linear Rails: Fast, precise movement for superior surface finish

• 7" Color Touchscreen & Remote Control: Intuitive UI with web dashboard and camera monitoring

• Auto Bed Leveling: 49-point mesh calibration for effortless first layers

• High-Temp Capability: Print PLA to Nylon-CF with 300 °C nozzle and enclosed chamber

• Quiet & Reliable: 32-bit control with TMC drivers, belt tensioners, and power-loss resume

• Safety First: Door sensor, HEPA/Carbon filtration, and thermal protections

Maintenance

• Daily: Clean the build surface and check filament path

• Weekly: Inspect nozzles, wipe rails, and clear chamber dust/filter intake

• Annually: Replace HEPA/Carbon filter, check belts and bearings, update firmware

Warranty

• Frame & Motion System: 3 years

• Electronics & Hotend: 2 years
